HCQ/HCA/HCM/HCV series light-duty high-speed marine gearboxes, with a power range of 20kW to 2300 kW, a speed ratio range of 1.0 to 3.5:1, and complete product specifications. Among them, the products with "Q" model are cast iron boxes, the products with "M" models are aluminum alloy boxes, and the products with "A" and "V" models are inclination transmission structures. This series of products has a high market share and is widely used in various types of yachts, transportation boats, passenger ships, official ships and other ships. The product design and manufacturing capabilities have reached the international advanced level.

Main technical features of the product:

1. It has the functions of reversing, clutching, decelerating, and bearing the thrust of the propeller;

2. Simple and compact structure, small size and light weight;

3. High rated input speed and high manufacturing precision of parts;

4. The whole machine has excellent performance, low noise and small vibration;

5. It is basically used in small and medium-sized high-speed ships with high-speed diesel engines;

6. Using mechanical and automatic control to realize emergency operation and remote control of the gearbox;

7. It can design and manufacture products with a small inclination angle of 5-14° for input and output.

Advance HCQ1600/ HCQ1601/HCQH1600 Series Marine Gearbox

This series of marine gearboxes have the functions of deceleration, reverse, smooth clutch and bearing propeller thrust. In order to adapt to the working conditions of high-speed ships and boats, the gearbox has made innovations in the design of volume and weight. A large number of high-quality alloy materials and special and reliable supporting components are used to form a powerful marine power unit. The HCQ1600/ HCQ1601 gearboxes are arranged vertically and eccentrically, and the HCQH1600 gearboxes are arranged horizontally and eccentrically, which can be used for the layout of the left and right engine rooms.
This series of marine gearboxes are mainly used in large high-speed passenger ships, official ships, special ships, and various high-speed engineering ships.

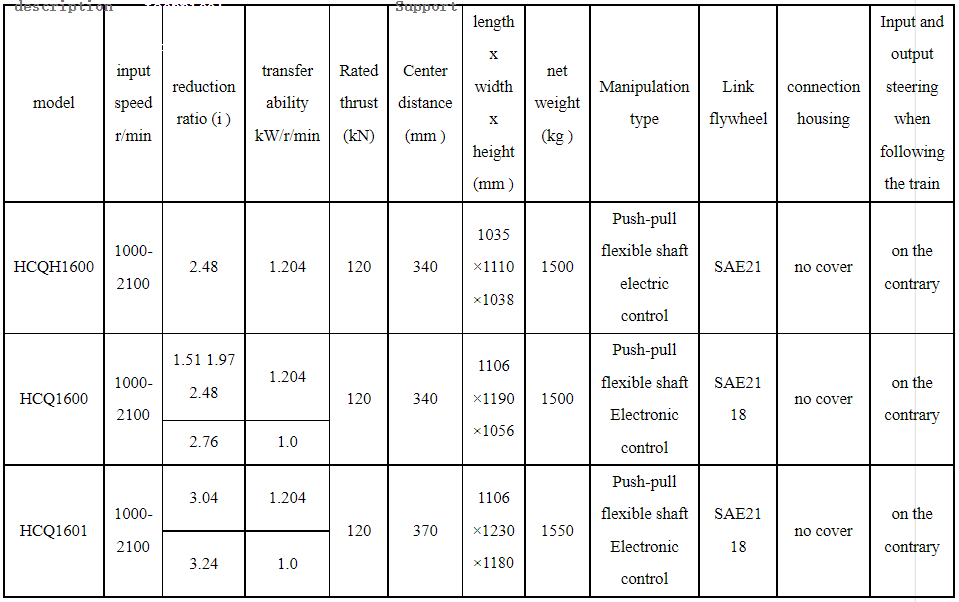

                                                                                  Parameters
