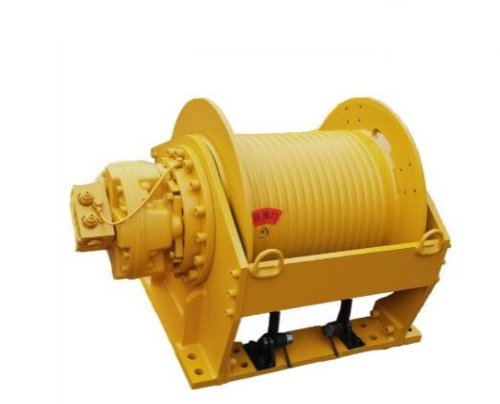

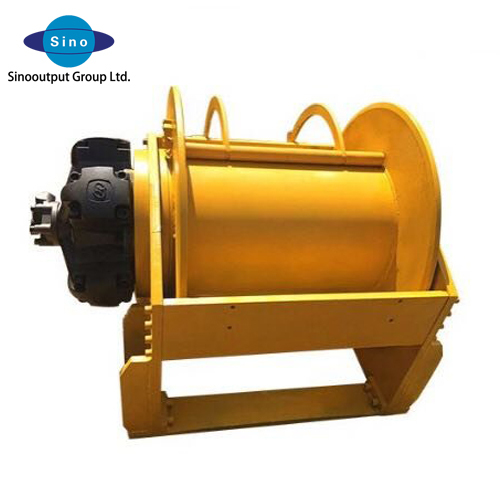

Marine hydraulic boat winch system

Item No.: 00338
Place of Origin:  Shanghai, China (Mainland)
Brand Name: sinooutput
Engine Type: Diesel
Type: Pump
load capacity: 25kn
power: 500-800hp
Engine type: in line
Bore*stroke: 126*130
Cylinder NO.: 6
Stroke: 4 stroke
fuel consumption: 196g/KW.h
Description Review
Description
Product Description

25Kn 500-800hp china cargos ship winch 24mm chain winch boat

Presentation of structure.



This hydraulic anchor winch consists of gear reducer, base, clutch,brakes,drum, warping head, spindle, hydraulic system, etc.


                                                             Main parameters



  Name Sino-Winch-24
1 Anchor chain diameter 24mm
2 Working load 24.48 kN
3 Overload pull 36.72 kN
4 Supporting load 149.4kN
5 Nominal speed ≥9m/min
6 Anchoring depth ≤82.5m
7 Reel load 15kN
8 Hydraulic motor JMDG6-700B
9 Oil pump 40SCY14-1B
10 System working pressure 8.2MPa
11 Adjusted pressure of Safety valve 13.5MPa
12 System flow 60L/min

Detailed Images





 Machine Parts

   Name: Gear reducer



 The hydraulic anchor winch gear  reducer adopts open gear    transmission, The system has the  advantages of high efficiency, large  bearing load and easy lubrication,  etc. Passive gear will transfer the  power to the shaft of anchor wheel.


Machine Parts

Name: Pedestal

The pedestal consists of the foundation andthebracket. Bracket is mainly used for supporting
wheel axis and clutch device, support radial load when the anchor winch working. The foundation is installed on the hull, so that the machine can be installed on the deck as a whole because of the installation requirement.



Machine Parts

Name: Brake

The brake device can be controlled by hydraulic control and manual control,hydraulic control:open the corresponding three way ball valve which is next to the brake, start the pump group, the brake is opened;Manual control:through the control of the brake wheel, turn the brake screw to achieve brake open and close.

Machine Parts

Name: Clutch

The clutch is used to control the separation and closing of the jaw clutch. When weighing anchor ,controlthe clutch handle of anchor drumto close the clutch,disengage the clutch of mooring drum;When mooring,disengage the clutch of anchor drum ,close the clutch of mooring drum.


Machine Parts

Name: Brake

The brake device can be controlled by hydraulic control and manual control,hydraulic control:open the corresponding three way ball valve which is next to the brake, start the pump group, the brake is opened;Manual control:through the control of the brake wheel, turn the brake screw to achieve brake open and close.


Machine Parts

Name:  Power unit



Power unit consists of tank, motor driven hydraulic pump etc. The oil tank is welded with steel plate, the tank is provided with a partition board, and the inlet and the outlet are separated.The oil tank is provided with a hydraulic pressure indicator, and a return oil filter is arranged on the oil tank;The electric motor and the oil pump are positioned below the oil tank, connected with an elastic coupling, they provide pressure oil for the hydraulic motor of the anchor winch.


Tube diameter Space of tube clamps
10~25 ≤1500
>25~50 ≤2000
>50~80 ≤3000
>80~120 ≤4000

 Certifications







Operation

1,Power to weigh and drop anchor

(1) Start the electric oil pump group

(2) Close the clutch of anchor drum

(3) Loosen the brake(Automatically open when hydraulic control)

(4) Operate manual / solenoid directional control valve to the weigh and drop anchor position.

2,Power to mooring

(1) Start the electric oil pump group

(2) Close the clutch of mooring drum

(3) Loosen the brake(Automatically open when hydraulic control)

(4) Operate manual / solenoid directional control valve to do mooring work.
