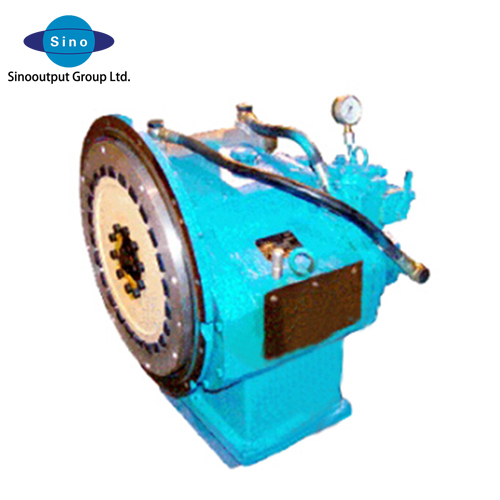

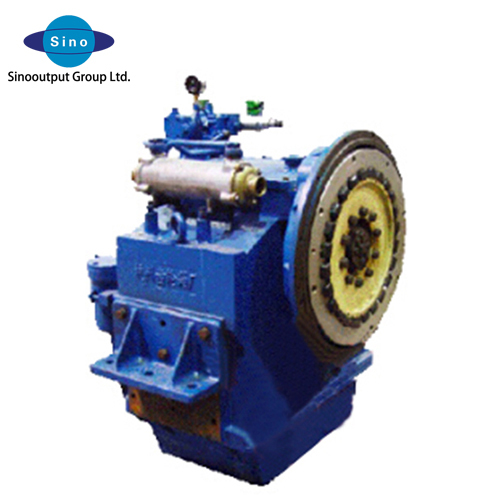

Advance MB series (MB170/ MB242/ MB270A) Marine Gearbox

Item No.: 00596
MB series marine gearboxes have the functions of deceleration, reverse, smooth clutch and propeller thrust. Vertical non-center one-stage transmission structure,  small size, light weight, convenient disassembly and maintenance, etc.
Description Review
Description

HC series marine gearboxes have a power range of 10kW to 3000kW and a speed ratio range of 1.5 to 24:1. The product specifications are complete and the market share is high. They are widely used in various heavy-duty ships such as transport vessels, fishing vessels, and work vessels. The company's product design and manufacturing capabilities are leading, reaching the international advanced level.

MB Series Marine Gearbox

MB series (MB170/ MB242/ MB270A) marine gearboxes have the functions of deceleration, reverse, smooth clutch and propeller thrust. This series of gear boxes is a vertical non-center one-stage transmission structure, which has the characteristics of small size, light weight, convenient disassembly and maintenance, etc.
MB series (MB170/ MB242/ MB270A) marine gearboxes are suitable for small and medium fishing boats, transport boats, tugboats, traffic boats, passenger ships and other ships.

                                                                                  Parameters:


model

input speed

r/min

reduction ratio (i )

transfer ability

kW/r/min

Rated thrust

(kN)

Center distance

(mm )

length x width x height

(mm )

net weight

(kg )

Manipulation type

Link flywheel

connection housing

Input and output steering when following the train

MB170

1500-2500

1.97
2.52
3.04
3.54
3.96

0.039

16

170

510 × 670 × 620

240

Push-pull flexible shaft

4135Ca X6110C

SAE14 11.5 10

4135Ca X6110C

SAE1 2 3

on the contrary

4.50
5.06

0.031

5.47
5.88

0.027

MB242

1000-2500

2.00
2.54
3.04
3.52
3.95
4.53

0.103

30

242

442 ×774 ×763

385

Push-pull flexible shaft

Electronic control

Air control

SAE14 11.5

6135

SAE1 2 3

6135

on the contrary

5.12

0.100

5.56

0.094

5.88

0.074


MB270A

1000-2500

3.00
4.05
4.53
5.12

0.147

39.2

270

594 × 810 × 868

675

Push-pull flexible shaft

Electronic control

Air control

SAE18 16 14

SAE0 1

on the contrary

5.50

0.134

5.95

0.110

6.39
6.82

0.088
