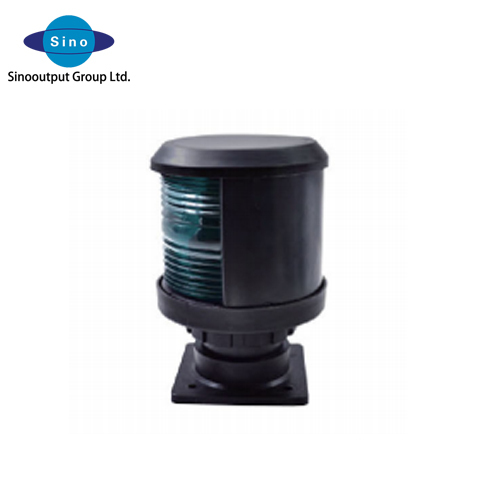

Navigation CXH1-3P marine signal lights starboard light`123
The scope of application
Fitfor the ships with the length less than12m as lamp signal when night navigation.
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF injection,the lampshade adopts injection of PC,
the lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure,it is waterproof under the bad environment.
3.The signal lights choose the special signal bulb which conform to the ship norm,it can repalce bulb
when open the up cover.
4. The signal lights can work normally under the temperature -30℃ to 55℃.
Adopt standard
1. Conform to<< THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA,1972>>
and <
2. Conform to the international standard IEC60598-1-2008.
3. Conform to the standard of marine electric signal light's technical condition GB/T 3028-1995.
Production authentication
Approved by CCS (China Classification Society),and ZY of China Fishery Inspection.
Specifications
| Name | Type | Visibility | Level arc | Lamp holder | Protection class | Cable outside diameter | Color | Weight |
| Starboard light | CXH1-3P | 1n.m | 112.5 | B15d | IP56 | 10-12 | Green | 0.53kg |
| Port light | CXH2-3P | 1n.m | 112.5 | red | 0.53kg | |||
| Masthead light | CXH3-3P | 2n.m | 225 | Transparent | 0.53kg | |||
| Stern light | CXH4-3P | 2n.m | 135 |
Transparent Yellow |
0.53kg | |||
| All-round light | CXH6-3P | 2n.m | 360 |
Red Green Transparent |
0.53kg |
